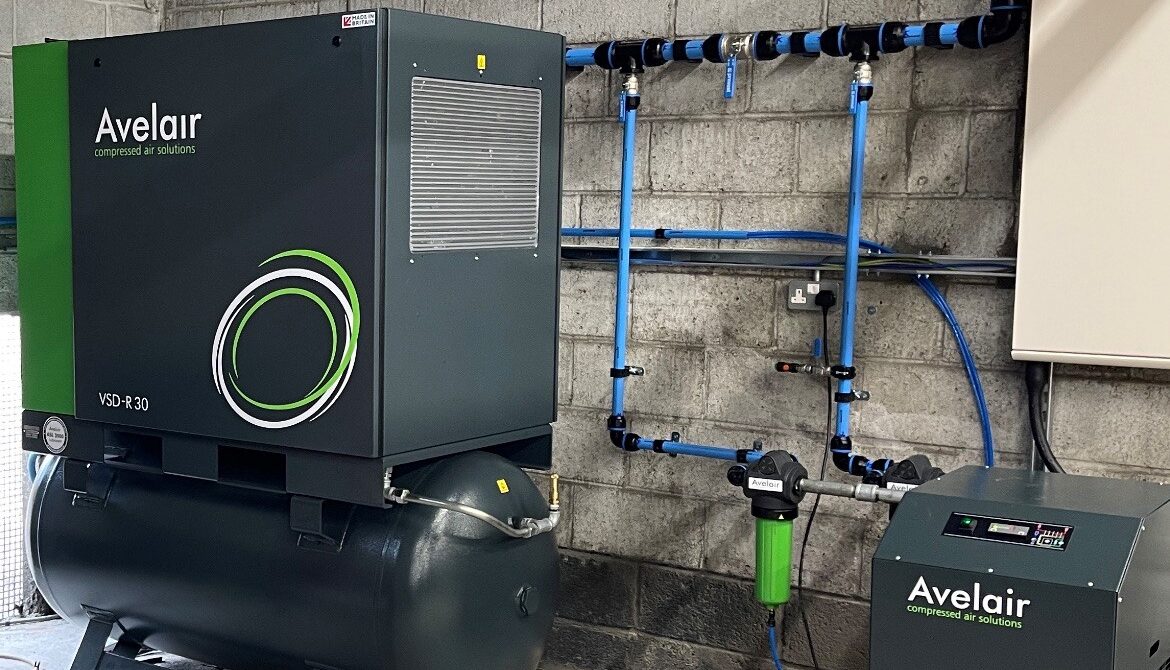

Compressed air plays a critical role in powering tools, equipment, and processes. However, an efficient compressed air system involves more than just the air compressor. To achieve an ideal system, additional equipment like air dryers and filtration should be integrated to ensure that the air quality meets the specific requirements of your application.
Without these components, issues such as moisture buildup, oil contamination, and fluctuating pressures can negatively impact performance, efficiency, and equipment longevity.
Click on the various parts of the compressor system below to find out more about what each unit does, and what benefits they bring.
Compressor unit
The compressor unit is the primary component that takes in air, compresses it, and sends it to downstream components. Avelair supplies rotary screw compressors, including both fixed speed and variable speed models, each suitable for different operational needs.
Cyclonic water separators
Cyclonic water separators are used to remove large quantities of condensed water from the compressed air system. Using centrifugal force, they spin out the heavier water droplets, which are then collected and drained. This step helps reduce the workload of downstream air dryers and ensures higher overall efficiency.
Receiver tank
A receiver tank stores compressed air and helps manage pressure fluctuations. It ensures that the compressor is not required to run continuously, allowing for energy savings and extending the equipment’s lifespan.
Filters
Compressed air often contains impurities like dirt, oil aerosols, and particulate matter. Even small particles can cause wear and tear on machinery or affect the quality of end products. A filtration system, therefore, plays a key role in creating an ideal compressed air setup.
Key filters include:
- Coalescing filters: These remove aerosols like oil and water.
- Particulate filters: These remove solid contaminants, ensuring clean air reaches downstream equipment.
- Activated carbon filters: These remove vapours and odours, providing ultra-clean air where required.
Air dryers: the importance of drying air
When air is compressed, its moisture content increases significantly. If this moisture isn’t effectively removed, it can cause corrosion in pipes, damage pneumatic tools, and lead to poor product quality in moisture-sensitive processes. Air dryers are crucial for removing water vapour from compressed air to protect equipment and ensure a consistent air supply.
Refrigerant dryers
Refrigerant dryers are a type of air dryer that works by cooling the compressed air to condense and remove moisture. These dryers are ideal for general-purpose applications, ensuring that air is sufficiently dry without needing the low dew points achieved by desiccant dryers.
Desiccant dryers
Desiccant dryers are another form of dryer designed to provide extremely dry air by absorbing moisture. They use desiccant materials to adsorb water vapour from the compressed air, which is critical for applications where air with extremely low moisture content is needed, such as in pharmaceutical or food production.
Condensate management systems
A major byproduct of compressed air systems is condensate, which contains both water and oil. This mixture, if left unmanaged, can damage equipment and pose environmental hazards. The separators, dryers and filters remove this condensate from the system. This is where a condensate management system comes in. A good condensate management system includes:
Automatic condensate drains: These remove moisture from various points in the system without manual intervention.
Oil-water separators: These separate oil from the condensate to ensure that water discharged meets environmental safety standards.
Pressure relief valves and regulators
Pressure relief valves are critical safety components that release air if the system pressure exceeds safe levels, while regulators maintain consistent pressure for the end-use application, ensuring optimal performance of tools and machinery.
Monitoring and control systems: optimising efficiency
A modern compressed air system benefits greatly from monitoring and control equipment. Digital control panels and intelligent control systems can continuously monitor various parameters like air pressure, temperature, moisture levels, and energy consumption. These systems provide critical data to operators, enabling them to:
- Optimise energy usage: Automated controls can reduce unnecessary compressor operation, improving energy efficiency.
- Detect and alert on issues: Sensors can detect abnormal pressure drops, high moisture levels, or oil contamination, helping prevent downtime and costly repairs.
- Implement predictive maintenance: Data collected from sensors can be used to predict maintenance needs, reducing unexpected failures and extending equipment life.
A well-designed air compressor system includes more than just a compressor. Avelair can help design the perfect system tailored to your specific needs by incorporating desiccant dryers, refrigerant dryers, condensate management, filters, and cyclonic water separators, depending on your requirements.
With Avelair’s expertise, you can ensure your compressed air is efficient, clean, and reliable. An ideal system delivers not only the required air quality but also maximises energy efficiency and minimises your environmental impact.
